POLY 75 welding machine
Main features
The machines of the POLY series are the ideal solution to the problems of polyfusion (socket) welding of pipes and fittings in PP, PE, and PVDF, both in thermo-sanitary and industrial applications.
They have a versatile and light structure and are equipped with heating plate with digital thermostat, which guarantees greater accuracy during the work phase.
The PTFE-coated bushes have the required shape in compliance with the strictest European standards including DVS 2208-1.
In the POLY 75 the movement of the machine takes place via a practical handwheel. It is equipped with a depth selector which automatically adjusts the depth according to the selected diameter, stops for positioning the pipe or fitting, two prismatic clamps, adjutstment of the welding temperature.
Technical data
| Range | d. 16-75mm |
| Standard voltage | 230V - 50Hz |
| Power consumption | 0.8KW - 3.4A |
| Weight | 28kg |
Machine composition
- Manual machine for polyfusion (socket welding) of pipes and fittings
in PP, PE and PVDF for both thermo-sanitary and industrial applications.

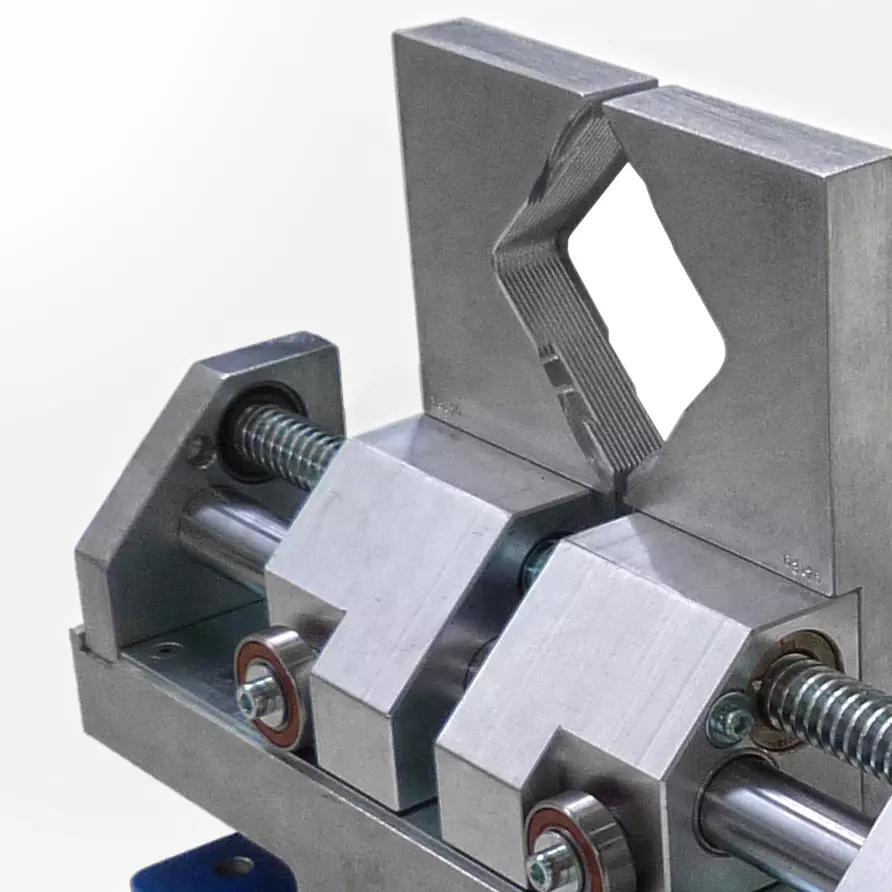

The particular "V" clamps allow the tightening of pipes and fittings of all kinds.
The practical front handwheel allows the movement of the machine.
It is also equipped with a side tube holder for all diameters. - Reference stops for positioning the pipe or fitting.
- Revolving heating mirror with electronic temperature control.
- A depth selector that automatically adjusts insertion
of the part to be welded according to the selected diameter. - Pair of PTFE-coated bushes d. 16, 20, 25, 32, 40, 50, 63, 75mm.
- Wooden crate for transport (cm 55x57x52h).
